Isuzu

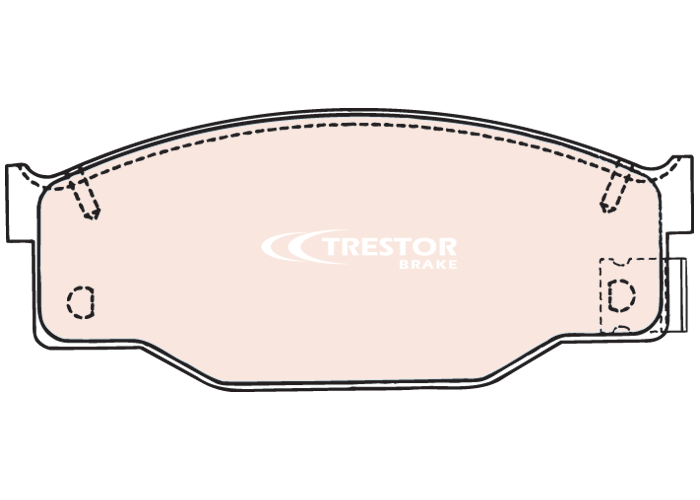

TDB380

Type

Disc Pad Set

Dimension

2 Pads 111 x 46 x 12 + 2 Pads 111 x 46 x 13 mm

Structure

2 Left Pads + 2 Right Pads

FMSI

7203-D300

WVA

21112

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.

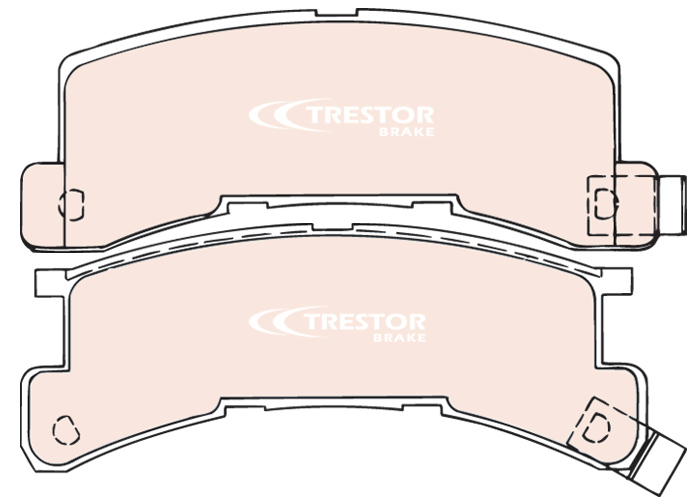

TDB385

Type

Disc Pad Set

Dimension

2 Pads 107 x 41 x 15 + 2 Pads 110 x 45 x 15 mm

Structure

LH Inner + LH Outer + RH Inner + RH Outer

FMSI

7204-D301

Download PDF

*Note : Figure is for illustration purpose only and it is not to scale. Please refer to actual dimension in millimetres.
